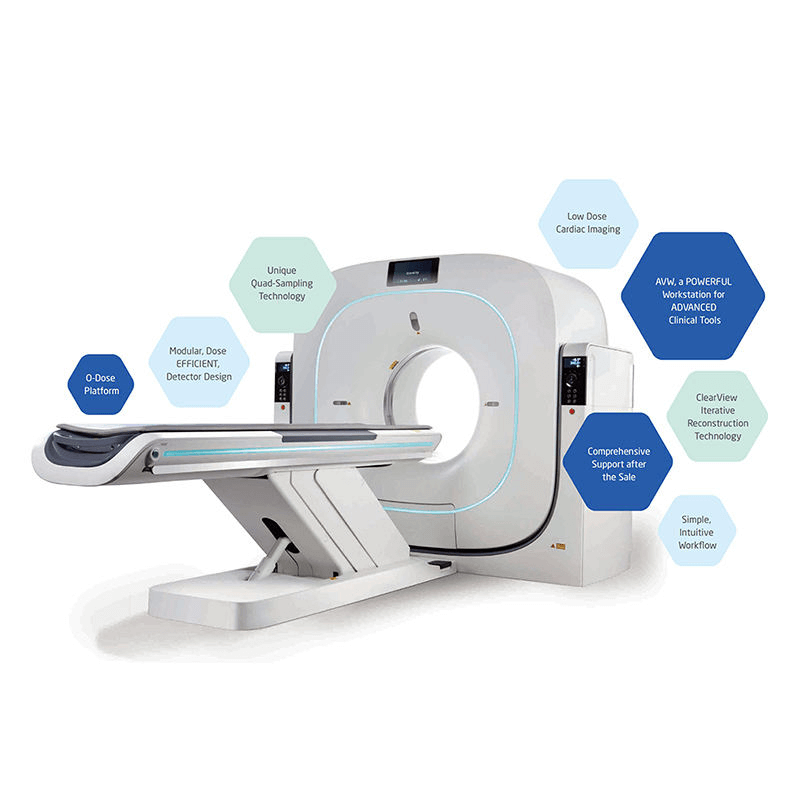

Multi slice spiral CT

Multi slice spiral CT
X-ray Tube & Generator
Tube Current : 30mA – 420mA
Tube Anode Heat Capacity: 5.0MHU
Max. Power: 50kW
Cooling Rate: 815kHU/min
Focal Spot Size: 0.6×1.2(Small)1.1×1.2(Large)
Tube Voltage: 80kV, 100kV, 120kV, 140kV
Data Acquisition System
Max.number of Slices: 64 Slices/RotationNumber of Detector Rows: 32 RowsNumber of Detector Elements: 672x32Total Channels per Slice: 1344
Number of Projections: 4640
Sequence Acquisition Modes: 64×0.625, 32×0.625, 16×0.625, 8×0.625, 4×0.625,2×0.625
Spiral Acquisition Modes: 64×0.625, 32×0.625, 16×0.625
Detector: Up to 30% SNR improvement compared to conventional CT detectors;· Down to 1us-2us decay time for sub second scan application;
Ultra low afterglow;
Special design to minimize electronic noise;High geometric efficiency
